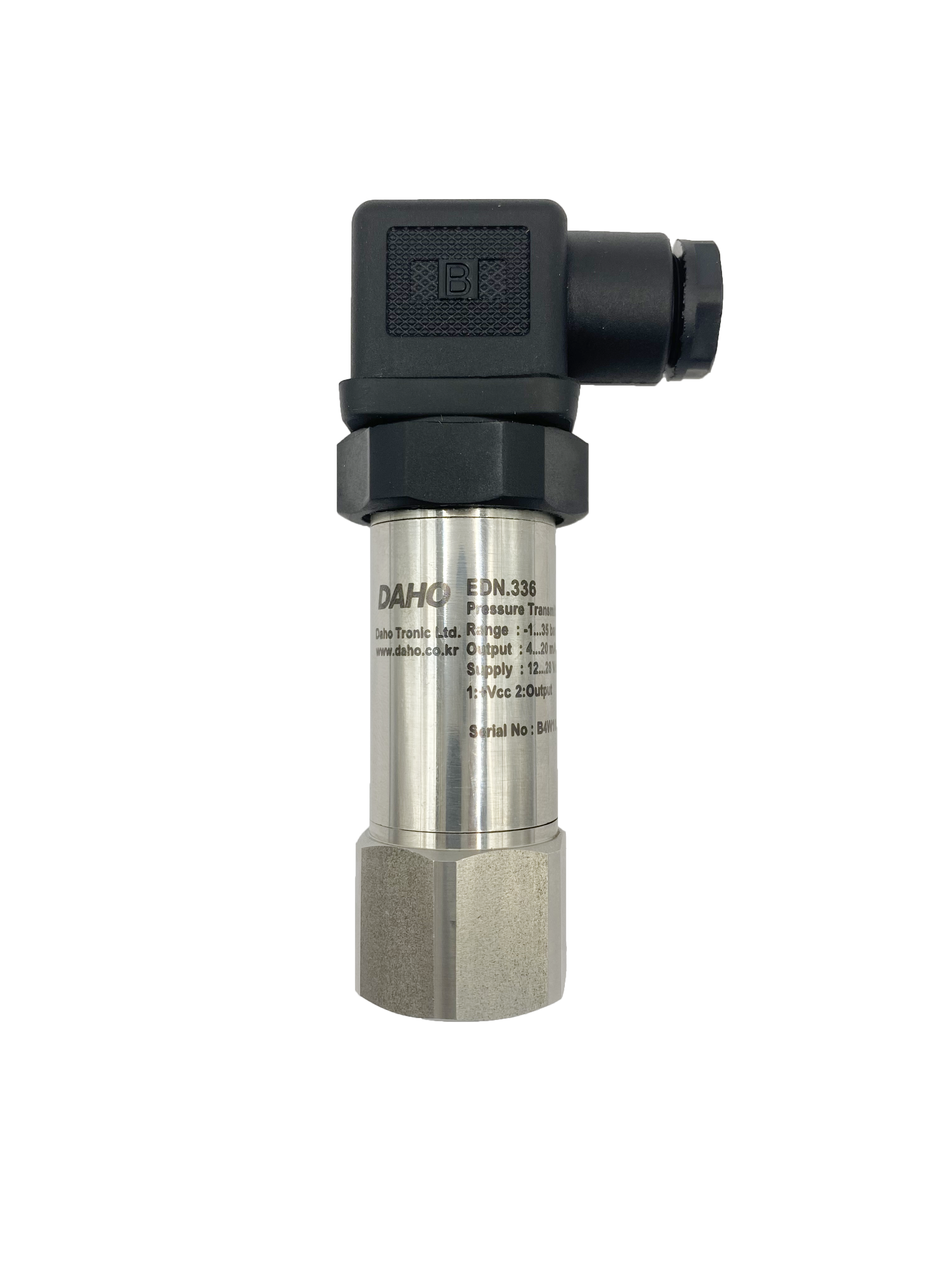

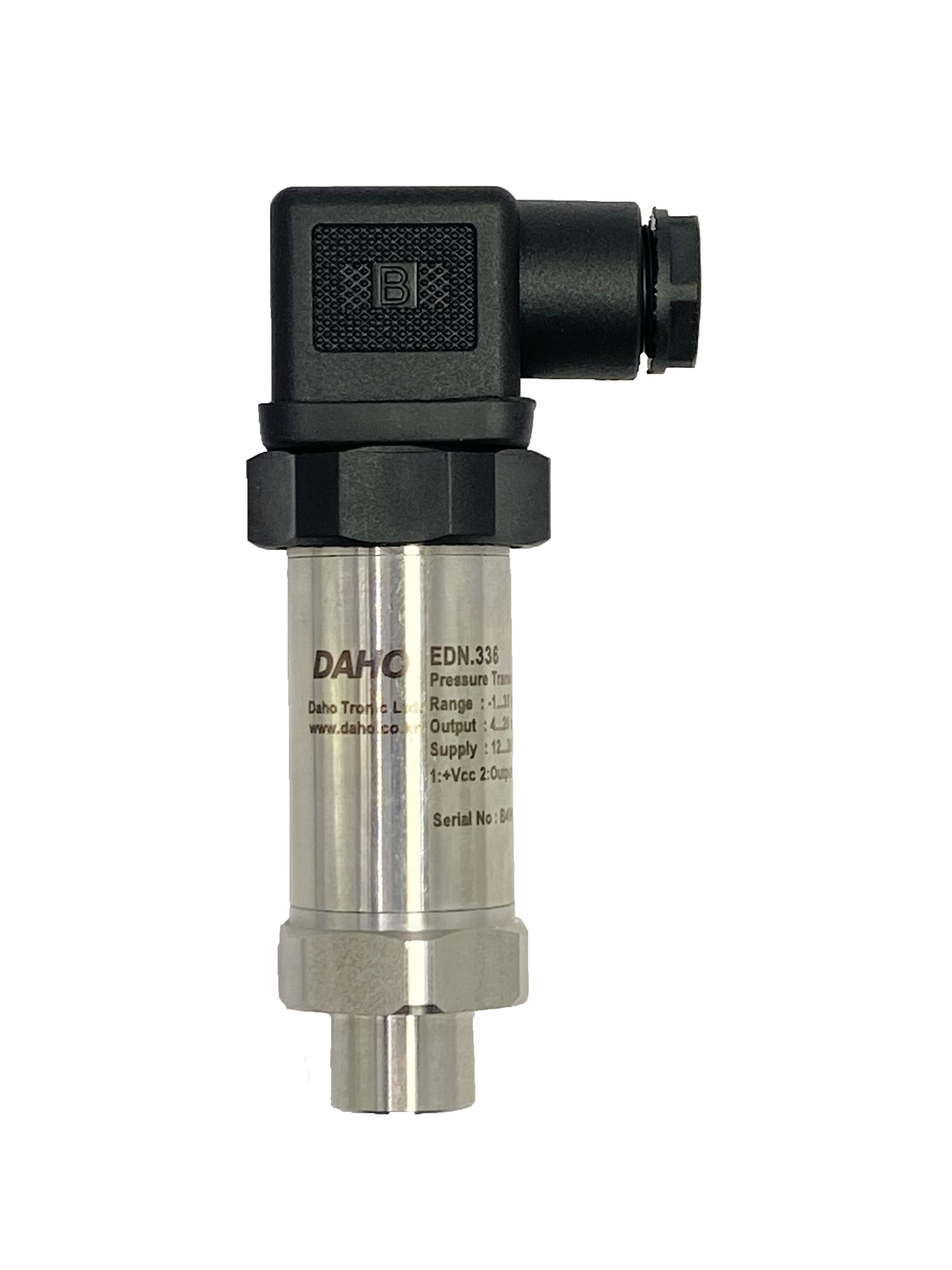

■ EDN.336, Pressure transmitter for refrigerant gas

- Designed for refrigerant gas applications

- All stainless steel wetted parts & housing

- No welding parts on diaphragm

- Pressure range -1…0 to 0…200 bar

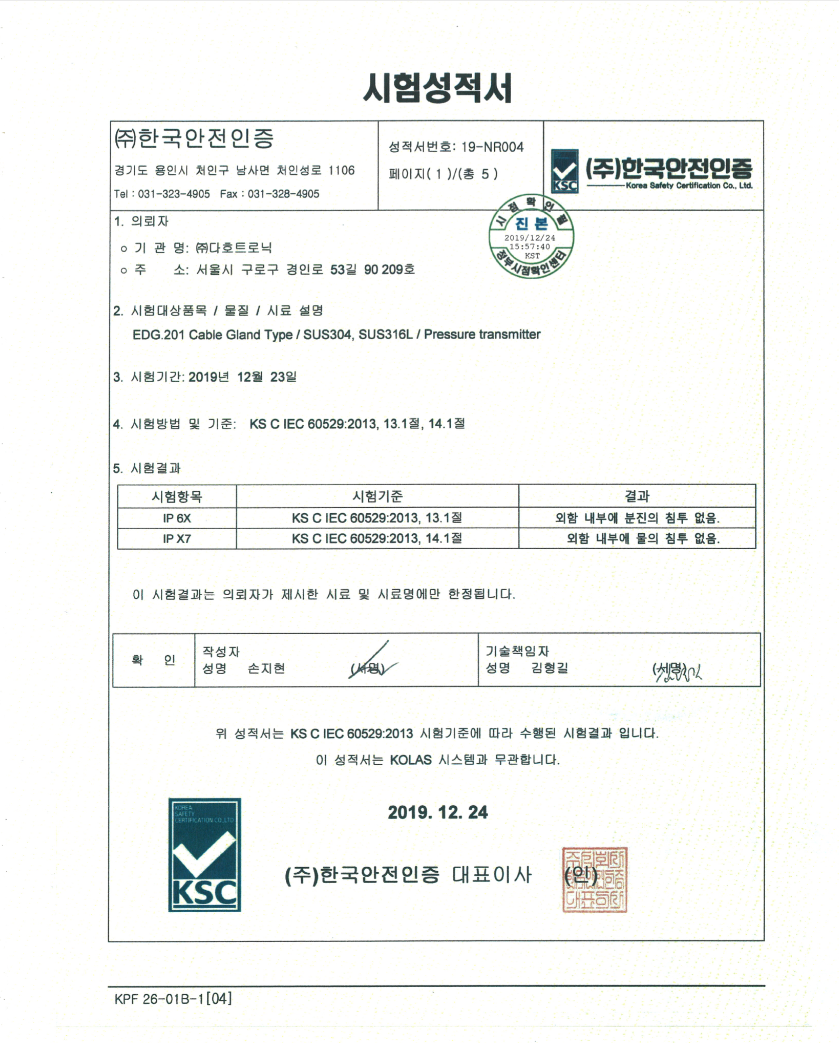

- Ingress protection IP65

- CE certified



■ Product Overview

In refrigeration systems using refrigerant gas, the gas itself is relatively stable; however, caution is required when used in industrial or enclosed environments.

Due to the characteristics of the refrigerant gas, the flush diaphragm of the pressure transmitter is manufactured from corrosion-resistant stainless steel 316L.

The flush diaphragm applied to the pressure sensor of EDN.336 is designed without any welding structure, fundamentally preventing separation or damage that may occur when using refrigerant gas.

This product has been developed using advanced technology to eliminate potential problems that may occur in conventional pressure transmitters when used in refrigerant gas environments.

■ Applications

▶ Refrigeration systems

▶ Air conditioning systems

▶ Heating systems

▶ Simultaneous negative and positive pressure applications

■ Accuracy Class

▶ ±0.5 % F.S

■ General Specifications

Pressure range	-1…0 bar to -1…50 bar
Accuracy	±0.5 % of F.S / BFSL(Best Fit Straight Line) ±1.0 % of F.S

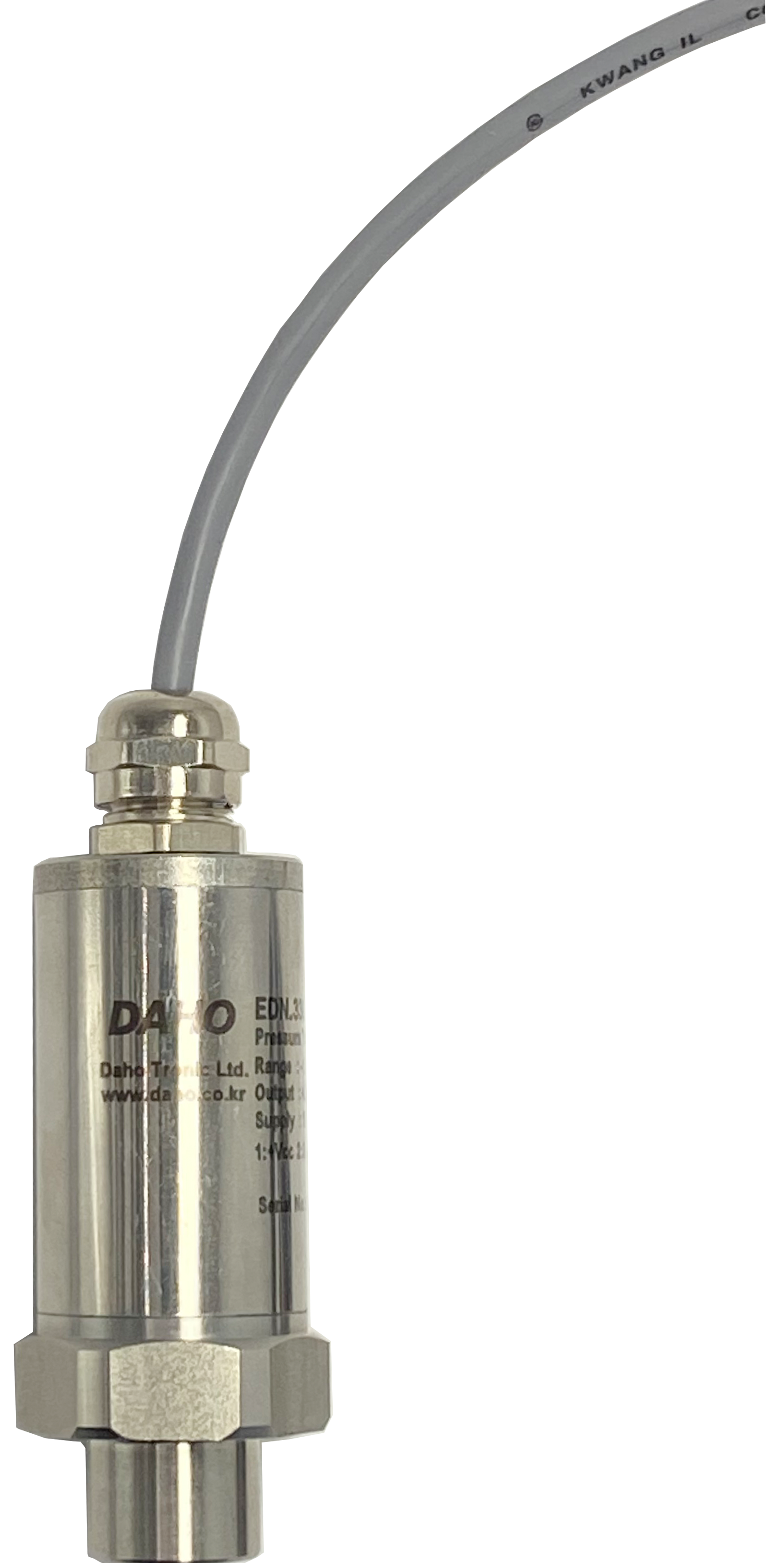

Electrical connection	Plug: M12 plug, Cable type
Signal Output	2-wire: 4…20mA 3-wire:0…10V, 0...5V, 1...5V
