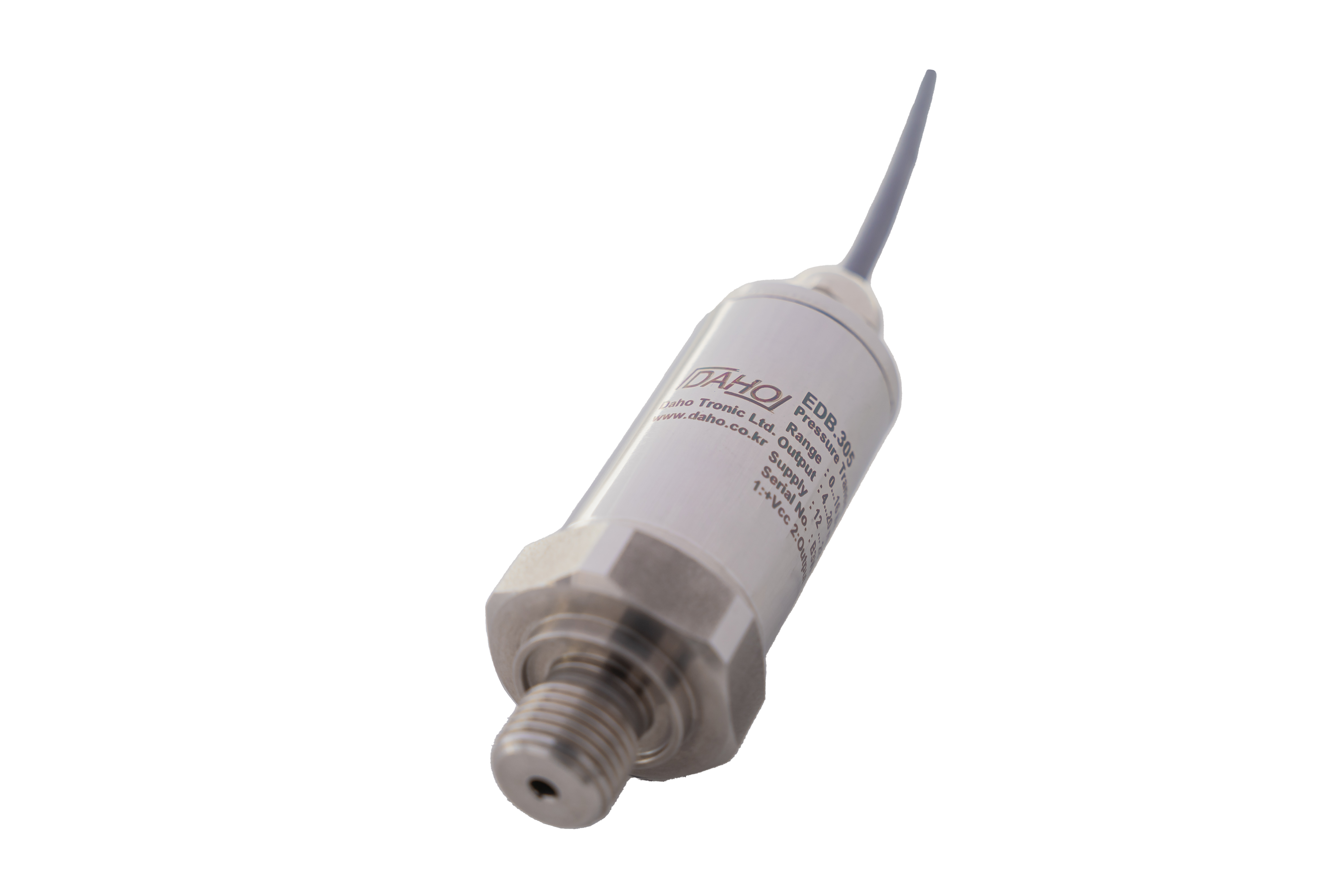

■ EDN.332, Pressure transmitter for pumps & compressors

- All stainless steel wetted parts (SUS 316L)

- Pressure range 0…1.6 bar to 0…200 bar

- Piezoresistive silicon pressure sensor

- Ingress protection IP65 / IP67

- Various electrical connections

- CE certified

■ Product Overview

The EDN.332 pressure transmitter is designed for pump and compressor applications, offering excellent quality at a highly competitive price.

This product is CE certified (Declaration of Conformity) and can be applied to export equipment. Various configurations are available according to end-user requirements.

The EDN.332 series is based on a piezoresistive silicon pressure sensor optimized for compressor and pump systems, ensuring high reliability and stable performance.

■ Applications

▶ Pump and compressor systems

▶ Hydraulic and pneumatic control systems

▶ Water treatment and air control systems

▶ Industrial process control and instrumentation

▶ HVAC and automation systems

■ Accuracy Class

▶ ≤ ±0.5% F.S (according to IEC, including non-linearity, hysteresis and repeatability)

■ Output Specifications

▶ 4…20mA (2-wire system)

▶ 0…10V (3-wire system)

▶ 0…5V (3-wire system)

▶ 1…5V (3-wire system)

▶ 0.5…4.5V (3-wire system)
