■ EDL.335 Low Pressure Transmitter

- Designed for Scrubber Machines and Low Pressure Measurement

- Low Pressure Measurement from ±25 mbar to ±500 mbar

- Piezoresistive Silicon Pressure Sensor

- Stainless Steel 316L Wetted Parts

- Various Electrical / Process Connections Available

- 4~20 mA and Various Voltage Outputs Available

- IP65 Protection Rating



■ Product Overview

The EDL.335 is a low pressure transmitter designed for precise pressure measurement in scrubber machines and low-pressure processes. Equipped with a piezoresistive silicon pressure sensor, it provides stable measurement over low pressure ranges from ±25 mbar to ±500 mbar. Stainless Steel 316L is used for the wetted parts and sensor diaphragm, while various output signals, electrical connections, and process connections are available for flexible use in low-pressure measurement systems for air and various gases.

■ Key Differentiators

① Precise Low Pressure Measurement
Supports low pressure ranges from ±25 mbar to ±500 mbar, making it suitable for scrubber machines and precise low-pressure monitoring.

② Various Connection Options
Various electrical connections such as DIN 43650A, M12 Plug, and Cable Type, as well as process connections such as G1/2, are available.

③ Options for High-Temperature Processes
High Temperature Adapter and Cooling Device options are available for process temperatures up to 200°C or 300°C.

■ Applications

▶ Scrubber Machines

▶ Low Pressure Measurement Systems

▶ Air Pressure Measurement

▶ Pressure Measurement of Various Gases

■ Options

▶ -40~+125°C Operating Temperature

▶ Restrictor Screw

▶ "USE NO OIL" for Oxygen Application

▶ High Temperature Adapter

▶ Cooling Device up to 200°C / 300°C

▶ Stainless Steel Tag Plate

▶ Manufacture Calibration Certificate

▶ KOLAS ILAC-MRA Calibration Certificate

▶ Certificate of Conformance / Origin

■ General Specifications

Pressure ranges	±25 / ±50 / ±250 / ±500 mbar (Other ranges available on request)
Accuracy	±0.5% F.S ±0.25% F.S (Measuring range ≥ 100 mbar)

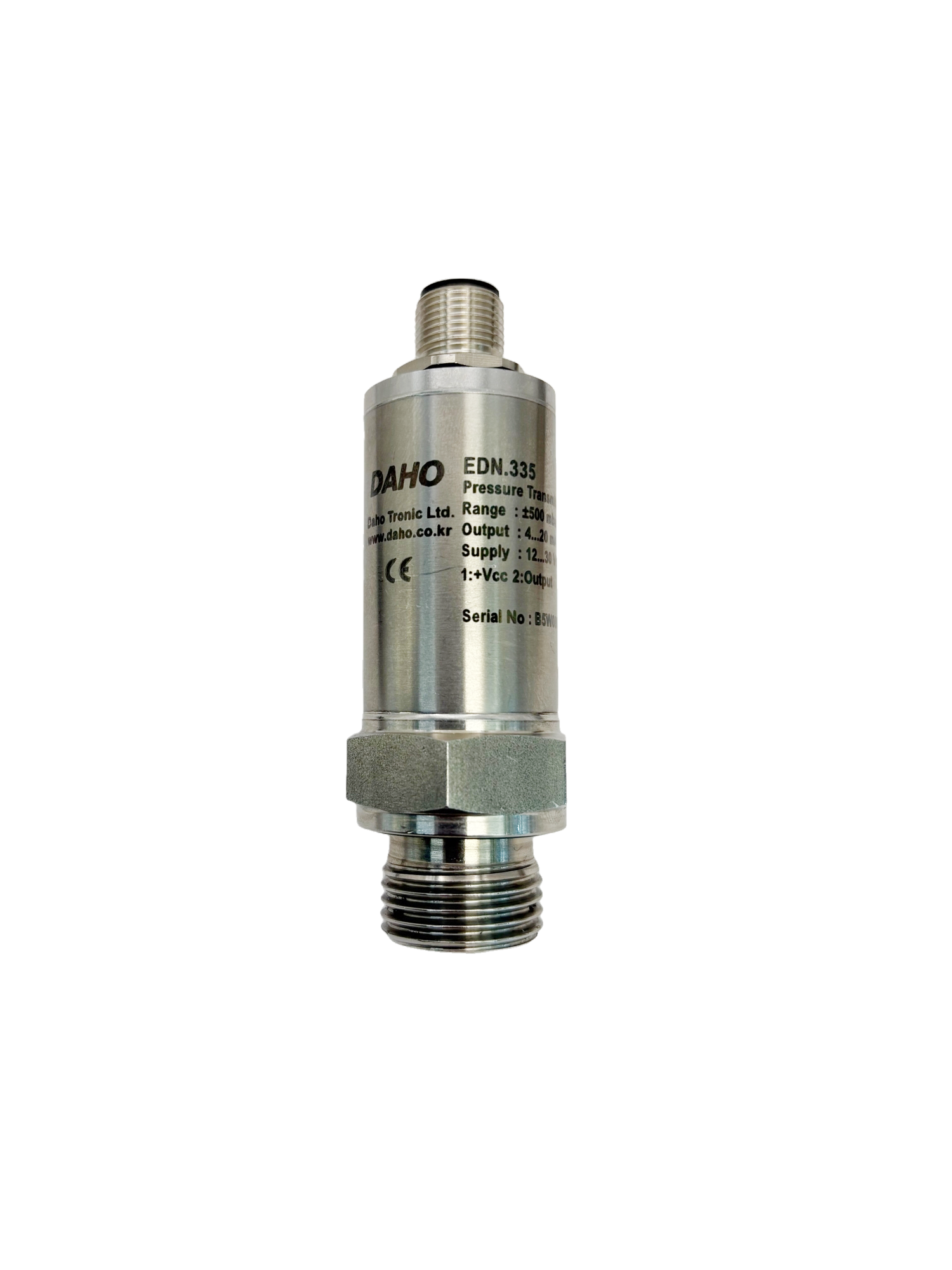

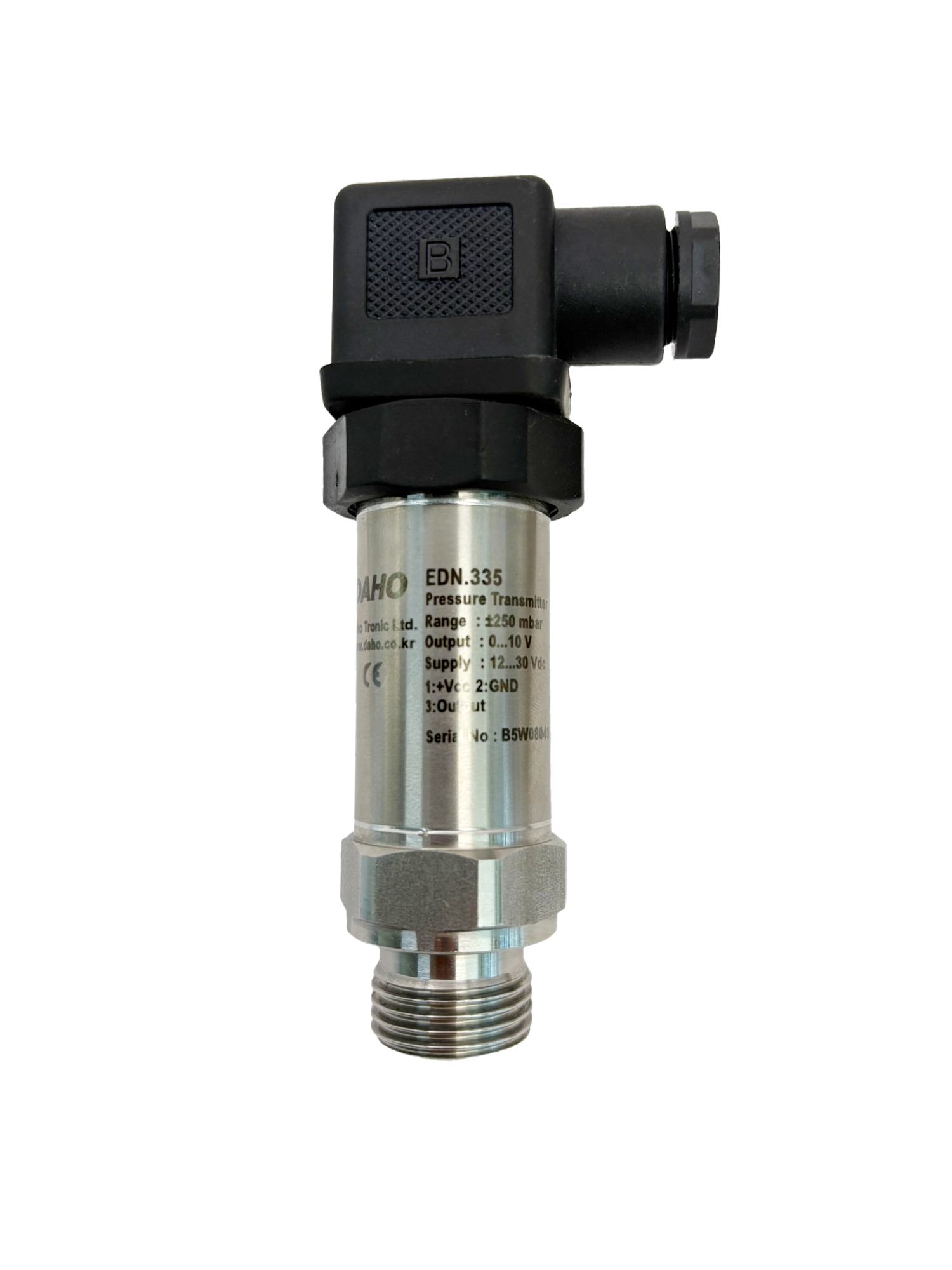

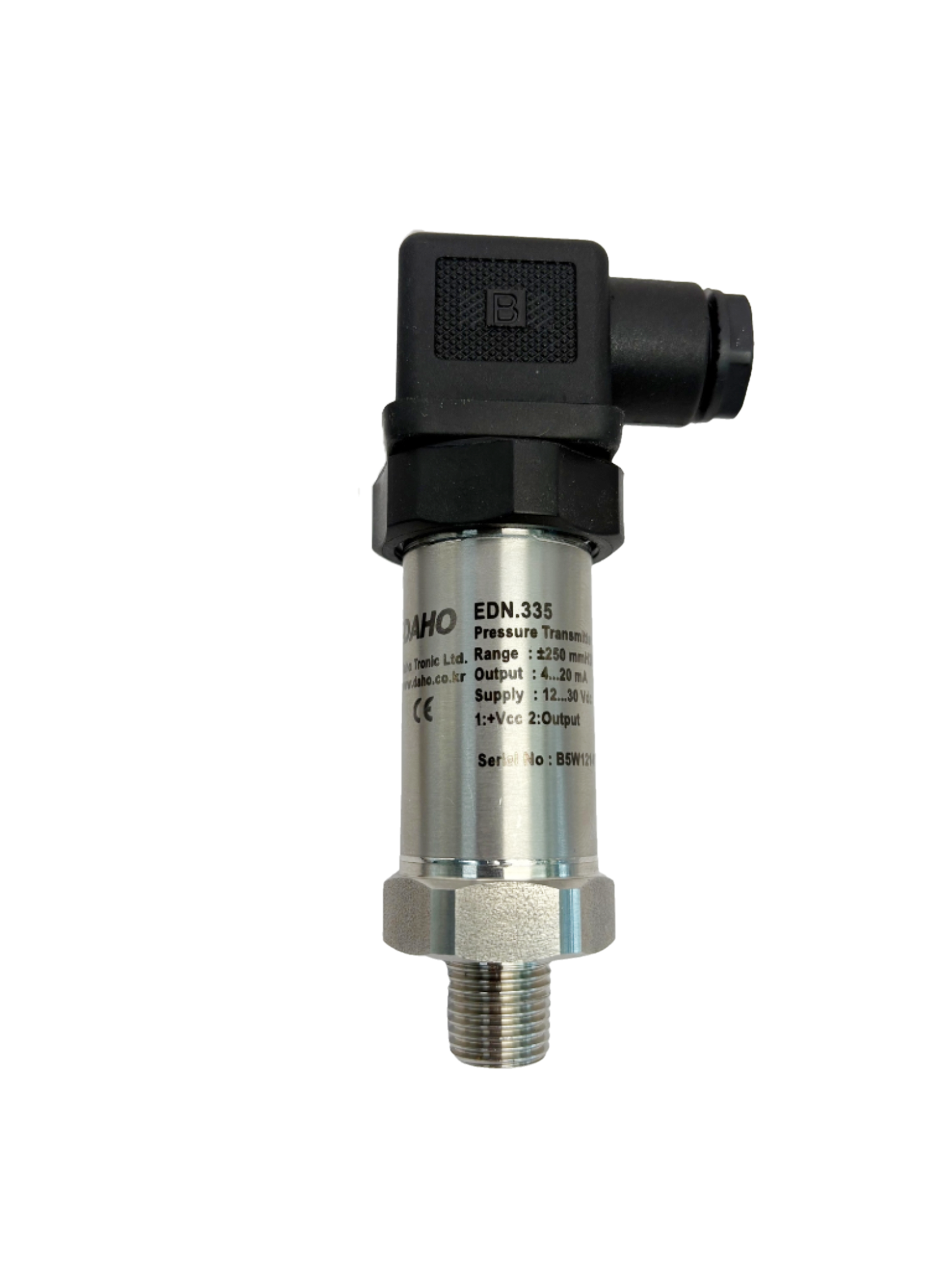

Electrical connection	mPm Plug DIN 43650A M12 Plug 2m Cable
Process Connection	G1/2 with 12.4 mm hole G1/4 with 6 mm hole R1/4 with 6 mm hole Others available on request
Signal output	4~20mA, 2-wire 0~10V / 0~5V / 1~5V, 3-wire
Operating temperature	-20~+100℃ Option: -40~+125℃
Material	Wetted Parts & Sensor Diaphragm: SUS316L Housing / Body: SUS304
Response Time	< 5 ms
