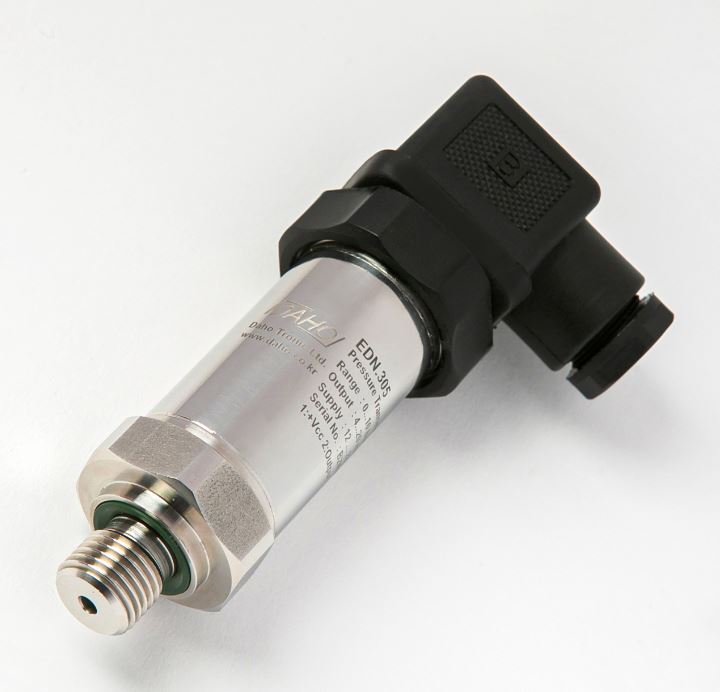

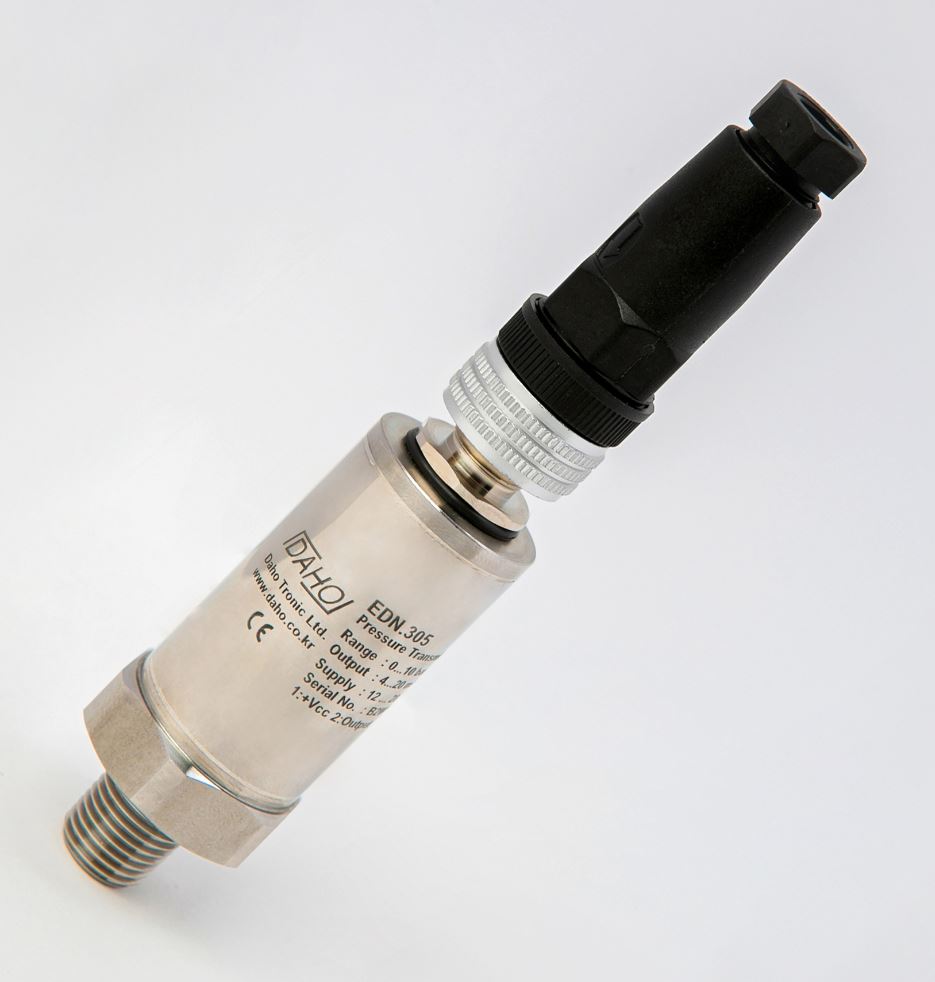

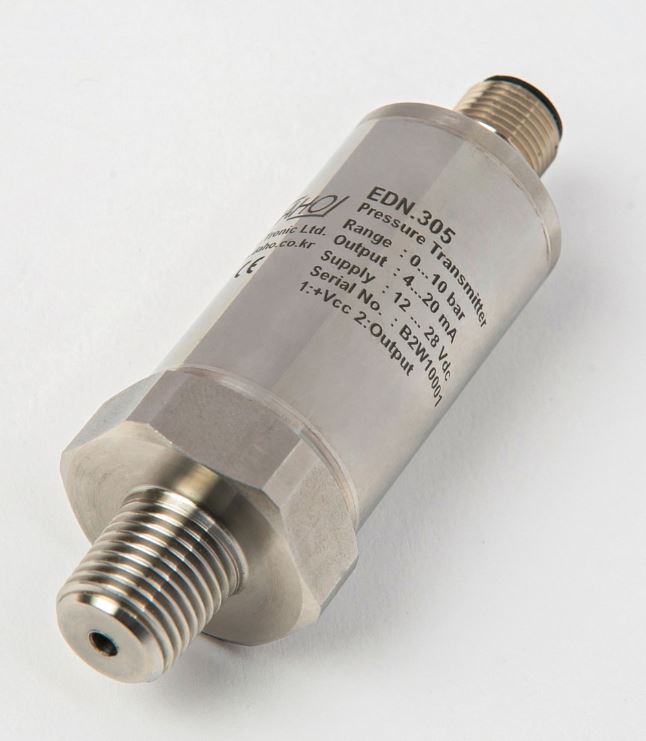

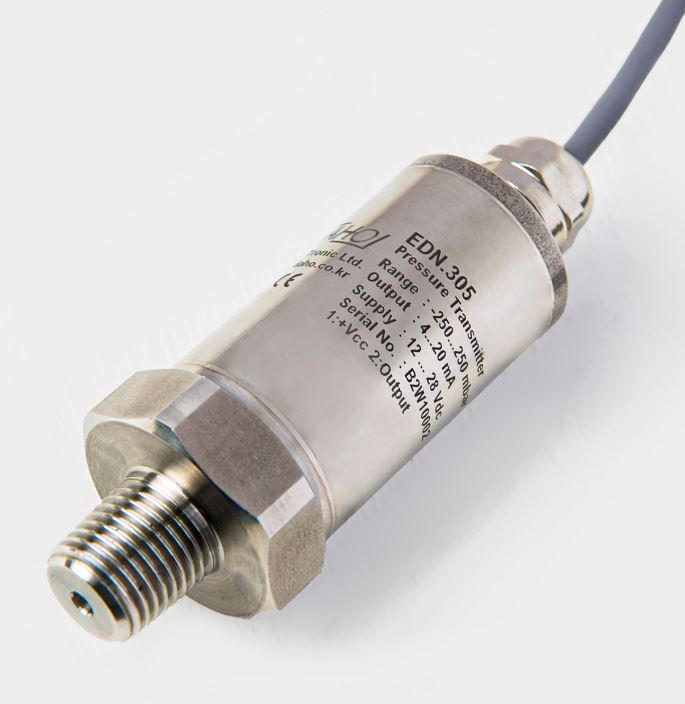

■ EDN.303, All st. steel housing pressure transmitter

- Piezoresistive silicon sensor

- All stainless steel wetted parts

- Pressure range -1…0 bar to 0…1000 bar

- Various electrical connections available

- Ingress protection IP65

- CE certified

■ Product Overview

The industrial pressure transmitter series EDN is manufactured based on a flush diaphragm type constructed from stainless steel using a piezoresistive silicon sensor.

It is designed and produced by incorporating advanced electronic component manufacturing technology along with modern industrial PCB chip design.

The electronic section, which receives and amplifies signals from the pressure sensor, is developed to deliver stable analog signals through rigorous control of noise, burst, insulation, and surge, as well as strict process and quality control procedures.

All products undergo precise calibration processes to ensure high accuracy and reliability.

During the development process, more than 10 types of rigorous comparative tests were conducted with both domestic and international products, proving the superior quality of the EDN series.

The EDN.303 pressure transmitter is designed for applications requiring precise control in various industrial environments, including factory instrumentation, process control, test equipment, and laboratory systems.

The standard accuracy is ±0.25% F.S, ensuring high precision performance. Various process connections and electrical plugs are available for use in a wide range of industrial processes and laboratory applications.

We believe that this product will contribute significantly to improving quality and operational efficiency in your systems.

■ Applications

▶ Hydraulic and pneumatic control systems

▶ Pumps and compressors

▶ Cooling equipment and air conditioning systems

▶ Pressure calibration and inspection

▶ Liquid pressure systems

■ Accuracy Class

▶ ± 0.25% F.S (standard)

▶ Non-linearity ≤ ±0.15% F.S
