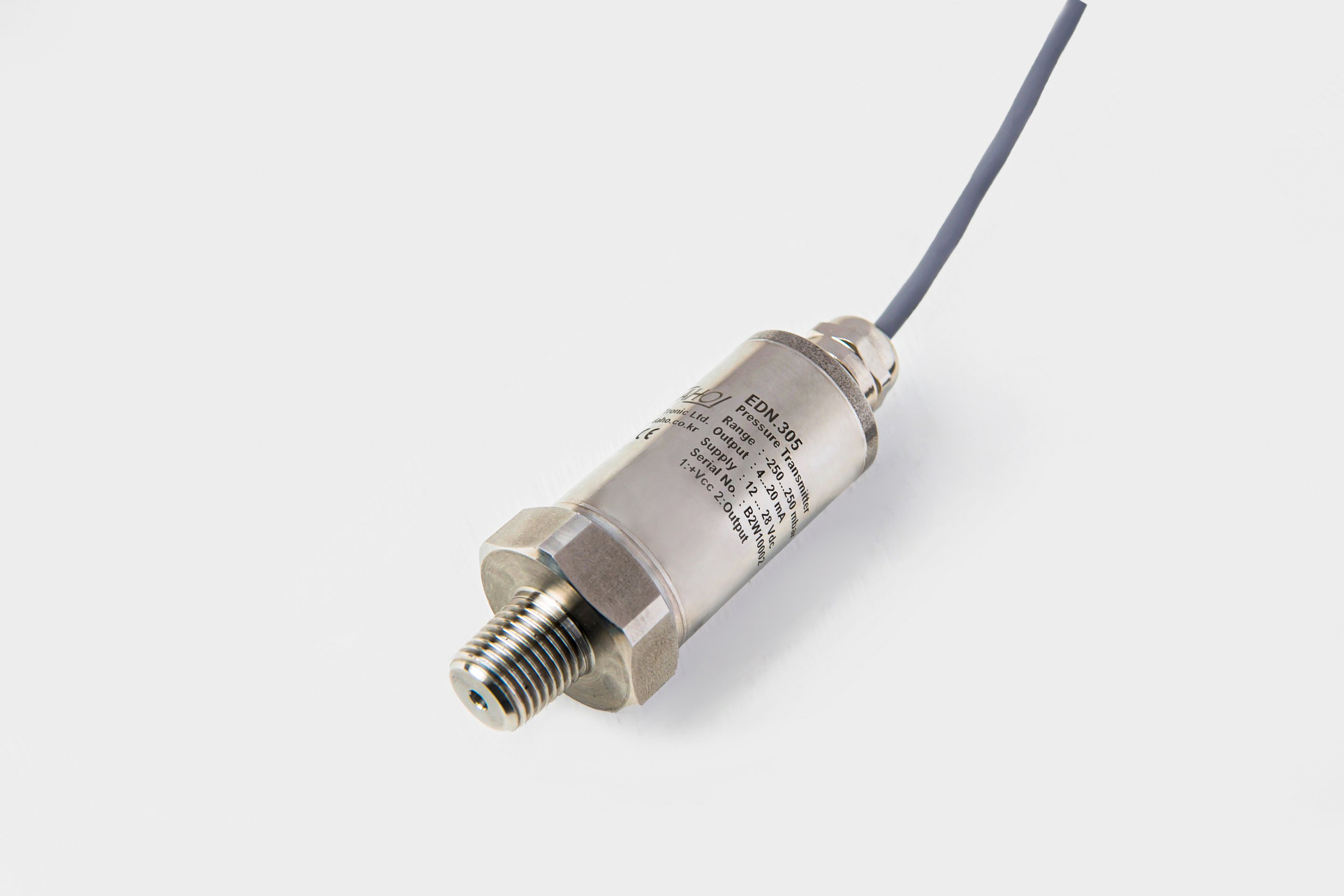

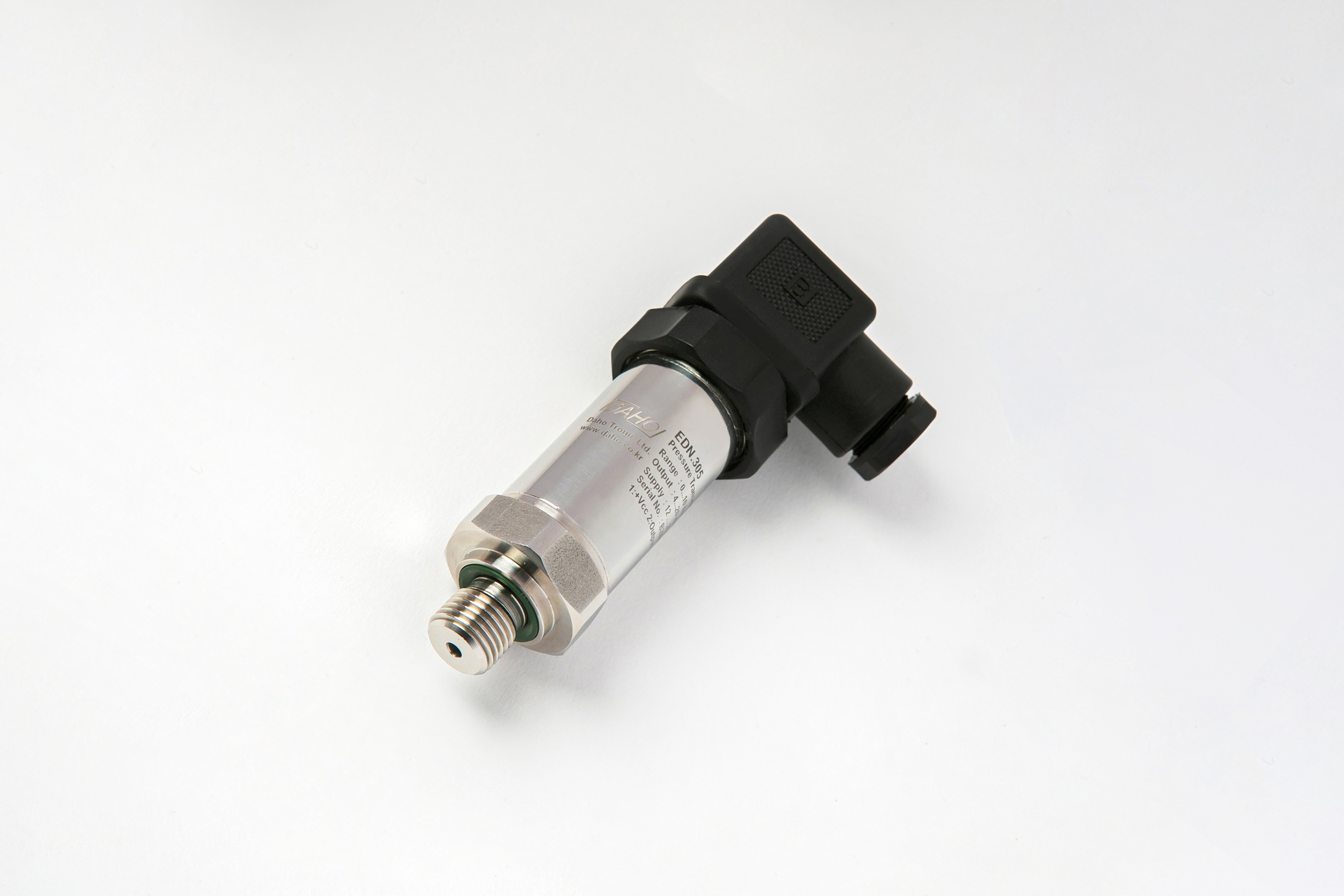

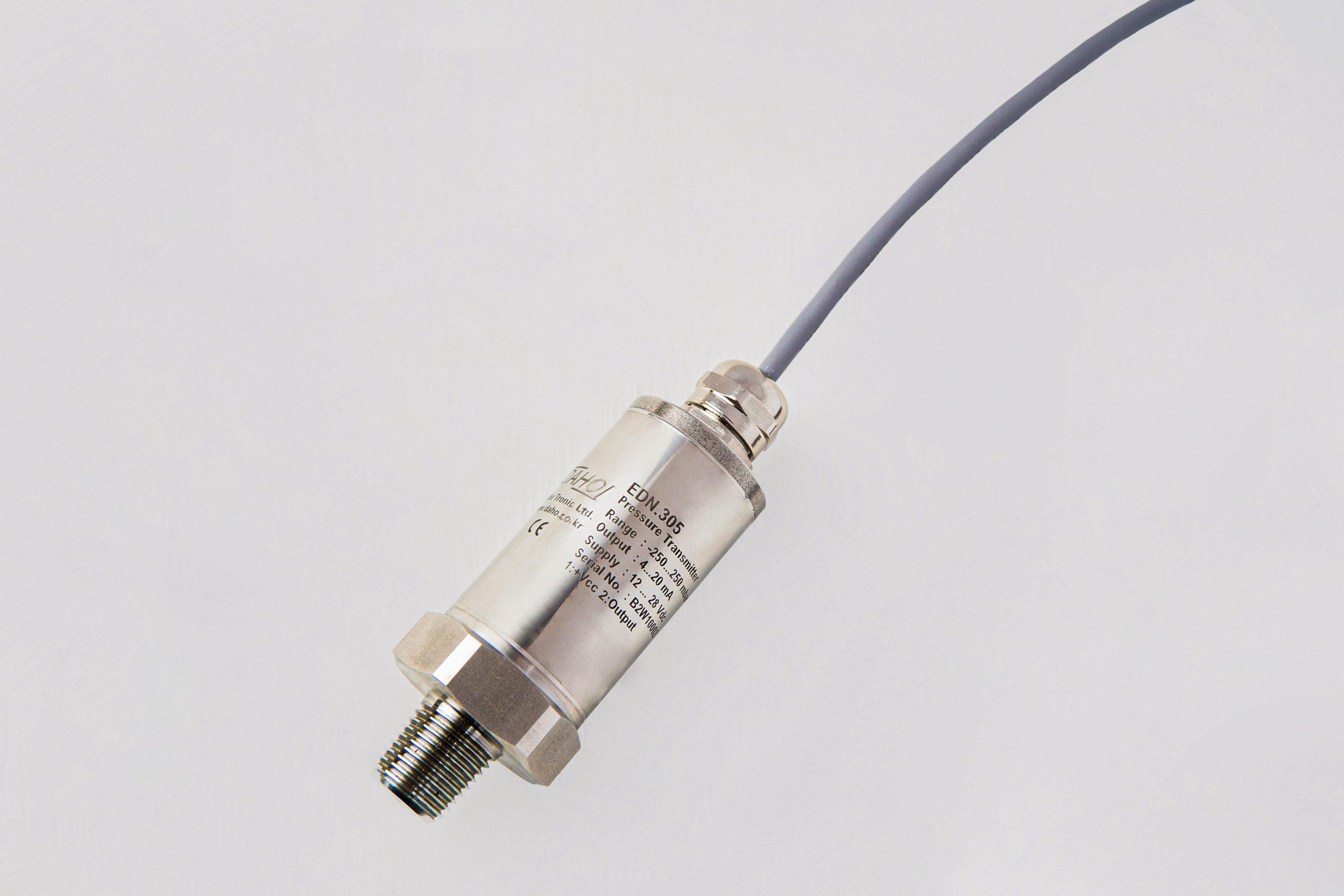

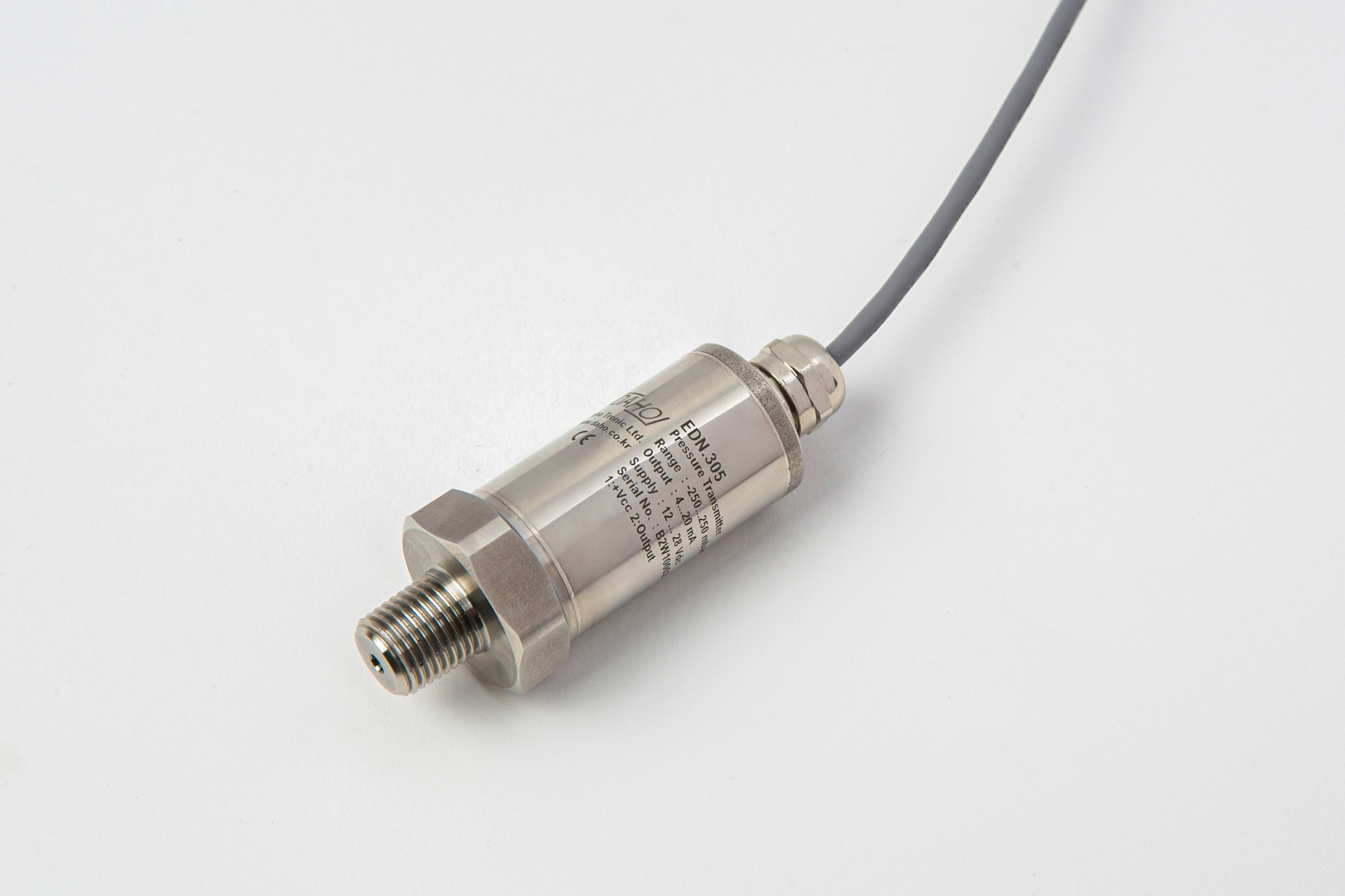

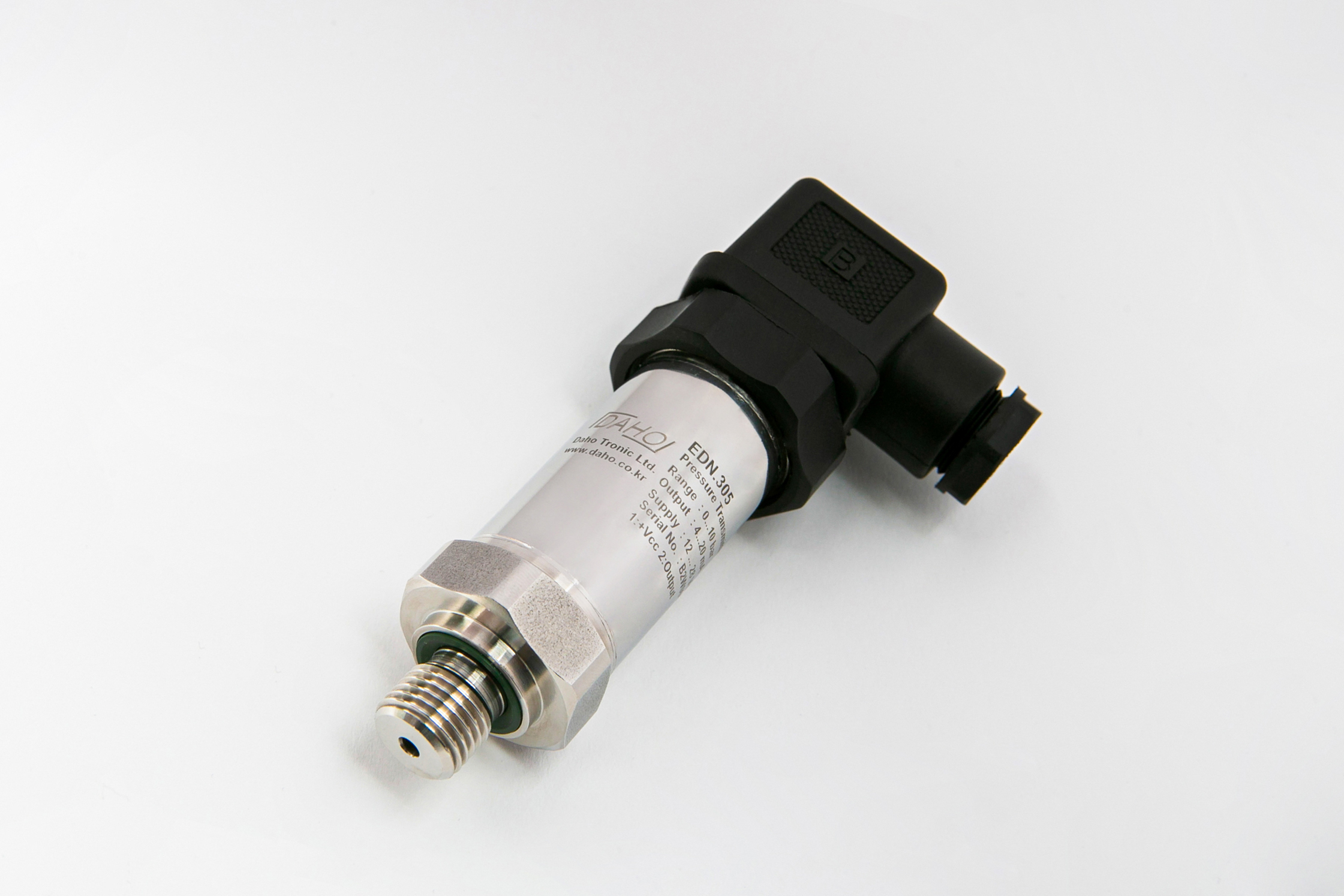

■ EDN.305, All st. steel housing pressure transmitter

- All stainless steel wetted parts

- Pressure range -1…0 bar to 0…1000 bar

- Accuracy ±0.5% F.S

- Various electrical connections available

- Ingress protection IP65

- CE certified



■ Product Overview

The industrial pressure transmitter series EDN is manufactured with a flush diaphragm based on a stainless steel piezoresistive silicon sensor.

It is designed and manufactured by incorporating highly advanced electronic component manufacturing technology together with modern industrial PCB chip design.

The electronic section, which receives and amplifies signals from the pressure sensor, is developed to deliver stable analog signals through rigorous control of noise, burst, insulation, and surge, along with strict process and quality control procedures.

All products undergo precise calibration processes to ensure high accuracy and reliability.

During the development process, more than 10 types of rigorous comparative tests were conducted with both domestic and international products, and as a result, the EDN series has proven to deliver superior quality.

The EDN.305 pressure transmitter is developed as a general-purpose industrial transmitter that can be applied in a wide range of industrial environments requiring process control and measurement management.

■ Applications

▶ Hydraulic and pneumatic industries

▶ Refinery and chemical industries

▶ Automotive industry

▶ Heavy industry and shipbuilding

▶ Semiconductor manufacturing industry

▶ Pharmaceutical industry

▶ Food and beverage industry

▶ Power generation and nuclear industry

▶ Wastewater and water treatment industry

Depending on the application, additional mechanical components such as diaphragm seals or chemical flanges can be provided for optimal and reliable installation.

■ Accuracy Class

▶ ±0.5% F.S

■ Certifications

▶ CE (Declaration of Conformity)

▶ EMC: EN 61326-2-3 / IEC 61326-1

■ General Specifications

Pressure ranges	-1…0 bar to 0…1000 bar
Accuracy	± 0.5% F.S
Electrical connection	DIN 43650 mpm plug M12 plug 2m cable on request
Signal output	4...20 mA, 2 wire-system 0…10V, 3 wire-system 0…5V, 3 wire-system 1…5 V, 3 wire-system
Operating temperature	-20…+80 ℃ / standard -40…+125℃ / option
