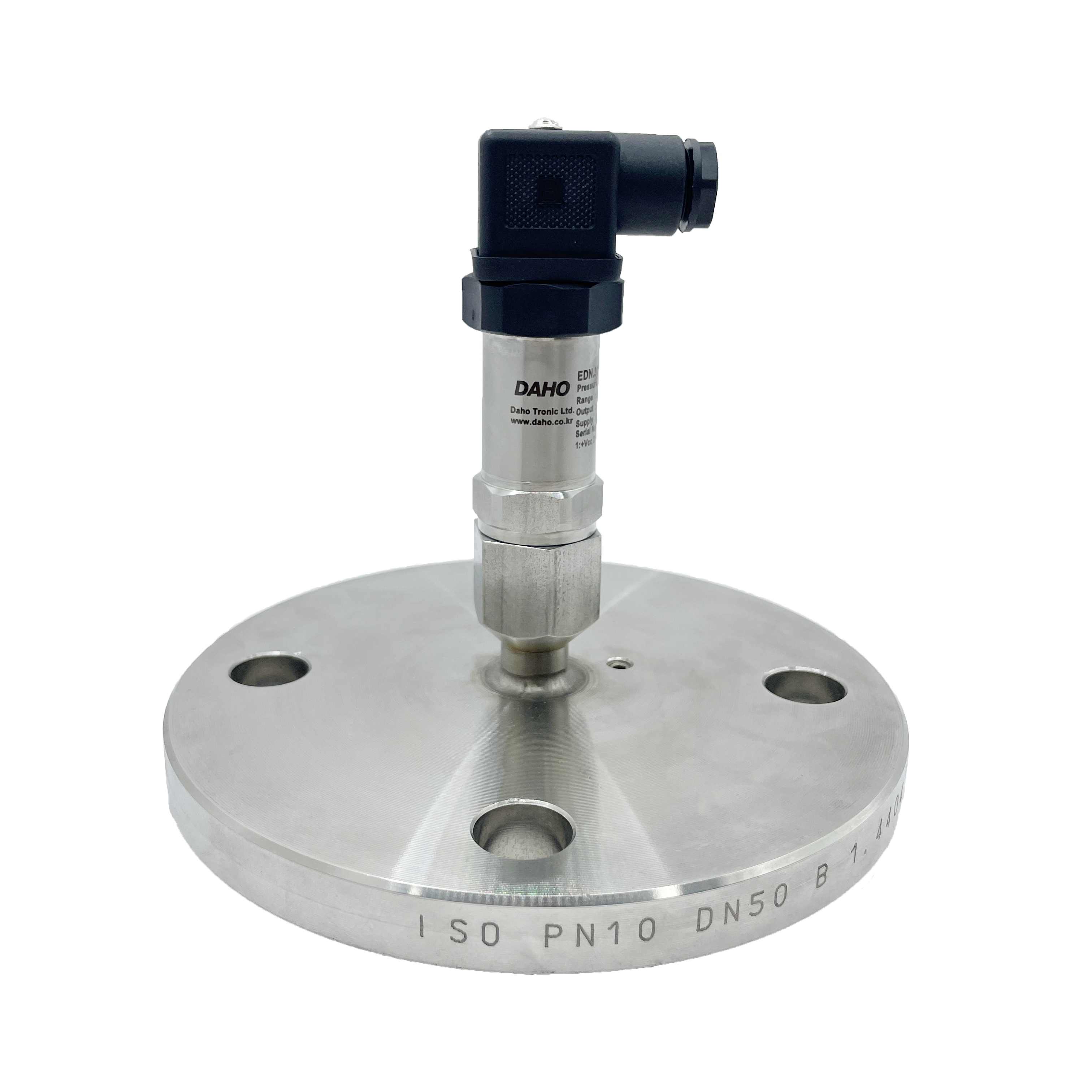

■EDN.316 Diaphragm Seal Pressure Transmitter

-       Diaphragm seal system for pressure measurement

-       Suitable for harsh and corrosive media

-       Flexible design and process connection options

-       Applicable to various industrial processes



■ Product Overview

The EDN.316 is a pressure transmitter equipped with a diaphragm seal system designed to protect the sensor and prevent direct contact with process media.



The diaphragm seal acts as a pressure transmission medium while minimizing chemical reactions with aggressive or special fluids.



It is suitable for complex and demanding process conditions, offering various design and material options.



■ Pressure Measurement Principle

The diaphragm seal isolates the process fluid using a flexible diaphragm.



The pressure is transmitted through a fill fluid to the sensor, ensuring accurate measurement while protecting the sensing element.



This design enables reliable operation in corrosive, viscous, or high-temperature media.



■ Features

▶ Diaphragm seal for sensor protection

▶ Suitable for corrosive and special media

▶ Various design and mounting options

▶ Material selection based on process conditions

▶ Designed for harsh industrial environments



■ 정밀도 등급 (Accuracy class)

▶ ±0.5% F.S



■ Accuracy Class

▶ ±0.5% F.S



■ Applications

▶ Chemical & petrochemical industries

▶ Oil & gas industry

▶ General process industries

▶ Corrosive and viscous media

▶ Hygienic and special applications



■ Design & Configuration

▶ Compatible with transmitters, sensors, gauges, and switches

▶ Flange type (flush or internal diaphragm)

▶ Capillary tube design available

▶ Various process connections and mounting options



■ General Specifications

Pressure ranges	0…1.6 bar to 0…250 bar
Accuracy	±0.5% F.S
Electrical connection	DIN43650A M12 plug cable type
Signal output	4...20 mA, 2 wire-system 0…10V, 3 wire-system 0…5 V, 3 wire-system 1…5V, 3 wire-system
Operating temperature	-20…+100 ℃ / -40…+120 ℃ (option)
