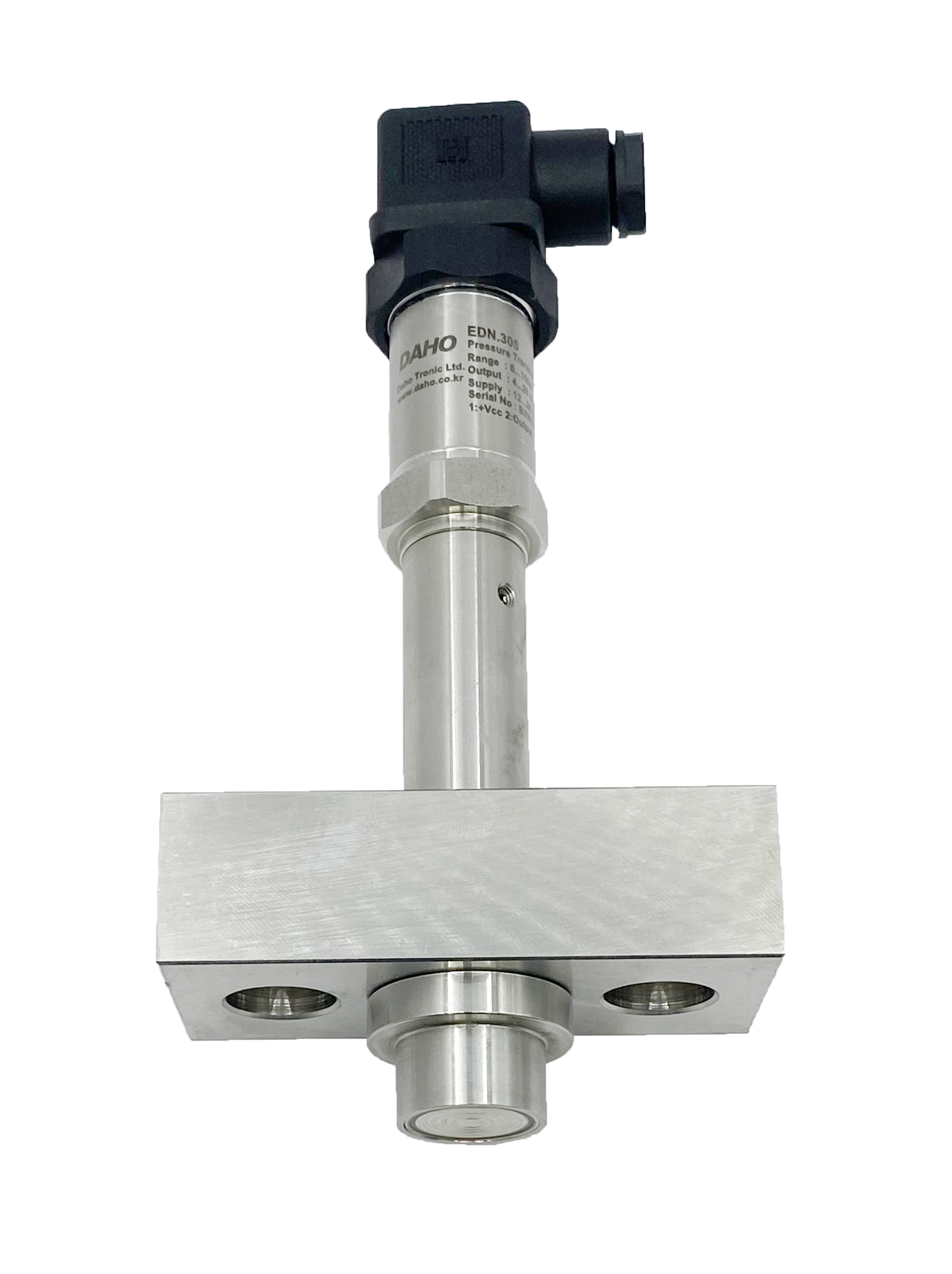

■ EDN.314, Sanitary Pressure Transmitter

- Sanitary diaphragm seal applied

- Suitable for food, pharmaceutical and cosmetic industries

- Designed for high-pressure vessels and homogenizers

- Various flange and material options available

- CE certified

■ Product Overview

The EDN.314 sanitary pressure transmitter is designed for pressure measurement and control in high-pressure vessels and homogenizer equipment, especially in food & beverage, cosmetic, and pharmaceutical industries, including milk processing applications.

Depending on the process conditions, a sanitary diaphragm seal must be applied, and the pressure is transmitted to the measuring instrument via calibration system oil inside the diaphragm seal.

To meet various industrial requirements, a wide range of designs, materials, and measurement systems are available according to applicable standards.

The technology for system fluids and block flange manufacturing and design has been specifically developed for this application field.

For homogenizer equipment requiring strict hygiene control, the transmitter can be assembled directly to the process using a block flange, and is manufactured to meet all general application requirements.

Even under high load conditions, reliable measurement is ensured, and under vibration or pressure spikes, the diaphragm seal is directly connected to the instrument to transmit pressure via a flexible capillary.

DAHO provides customized solutions for various applications, and the diaphragm seal is fully sealed with wetted parts made of hygienic materials in accordance with international standards.

■ Applications

▶ Food and beverage industry

▶ Cosmetic and pharmaceutical industry

▶ Milk and dairy processing equipment

▶ High-pressure vessels and homogenizers

■ Accuracy Class

▶ Standard: ±0.5% F.S

▶ Option: ±0.25% F.S

▶ Option: ±0.1% F.S

■ General Specifications

Pressure range	0…160 bar to 0…1000 bar
Accuracy	±0.5 % of F.S
Electrical connection	Plug: DIN43650 A, M12 plug, Cable type
Signal Output	2-wire: 4…20mA 3-wire:0…10V, 0…5V, 1…5V
Pressure connection	According to DIN 1092-1, ASME B16.5, JIS
Process temp.	Operating : -20…100℃ / Optional : -40…120℃ Compensated : 0…70℃ / Optional : -10…80℃
