■ EDL.350 Differential Pressure Transmitter

- Low differential pressure measurement from 0...10 mbar to 0...1600 mbar

- Piezoresistive Silicon Pressure Sensor

- Stainless Steel 316L Wetted Parts

- 4...20 mA and Various Voltage Outputs Available

- DIN 43650A / M12 Plug / Cable / General Head Available

- IP65 Protection Rating



■ Product Overview

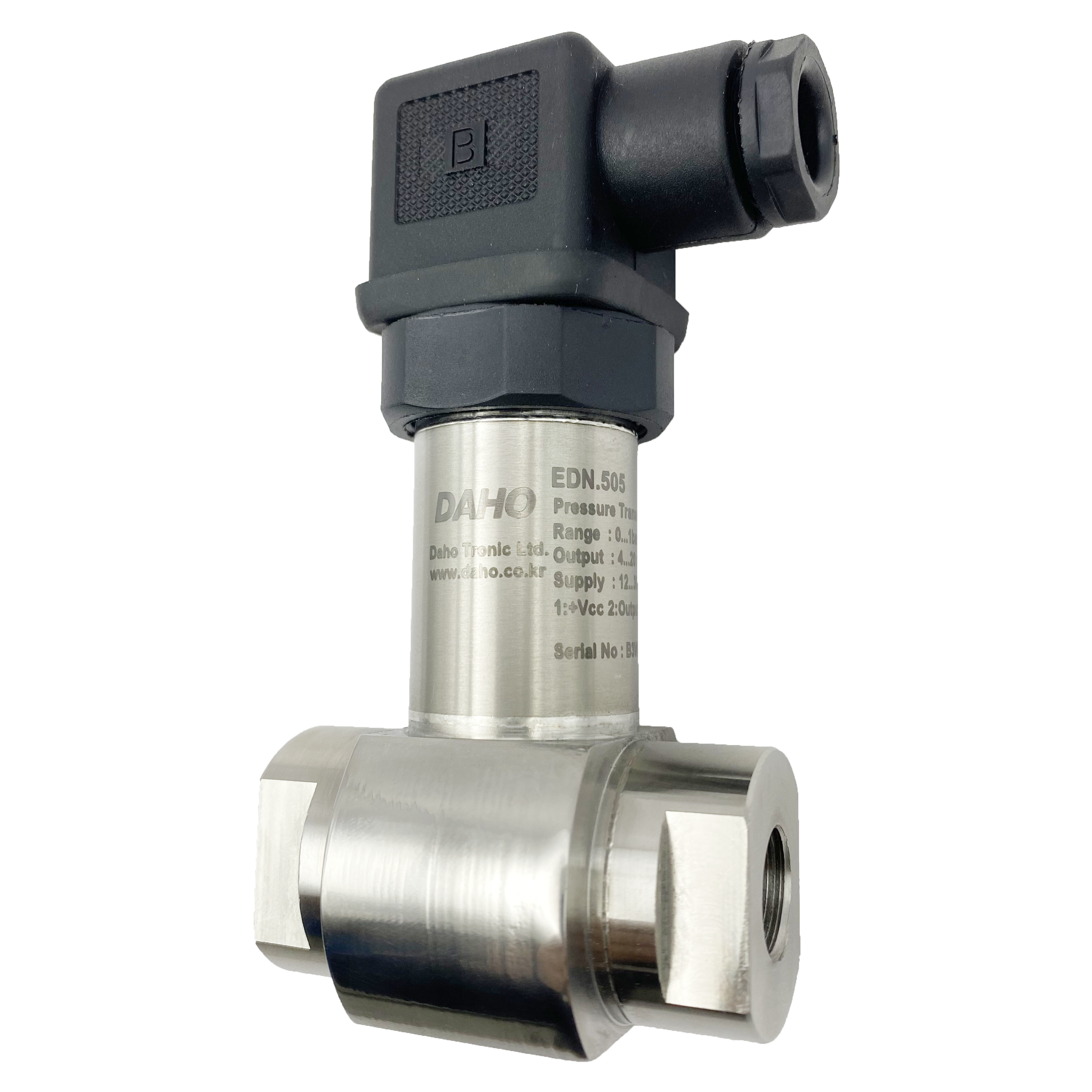

The EDL.350 is a piezoresistive silicon differential pressure transmitter designed for low differential pressure measurement. It supports differential pressure ranges from 0...10 mbar to 0...1600 mbar and can withstand static pressure up to 200 bar, making it suitable for measuring low differential pressure in processes with high line pressure. Stainless Steel 316L is used for the wetted parts and sensor diaphragm, and various output signals and electrical connections are available. The EDL.350 is suitable for a wide range of applications including hydraulic and pneumatic control systems, level measurement, air-conditioning systems, and differential pressure monitoring.

■ Key Differentiators

① Precise Low Differential Pressure Measurement
Supports differential pressure ranges from 0...10 mbar to 0...1600 mbar, making it suitable for monitoring fine differential pressure changes.

② Maximum Static Pressure up to 200 bar
Capable of withstanding static pressure up to 200 bar while measuring low differential pressure, making it suitable for high line-pressure applications.

③ Various Accuracy and Output Configurations
In addition to the standard ±0.5% F.S accuracy, ±0.25% F.S and ±0.1% F.S options are available depending on the measuring range. 4...20 mA and various voltage outputs are also supported.

④ Various Electrical Connections
DIN 43650A, M12 Plug, 2 m Cable, and General Head options are available to provide installation flexibility.

■ Applications

▶ Hydraulic & Pneumatic Control Systems

▶ Level Measurement Systems

▶ Control Equipment & Air-Conditioning Systems

▶ Differential Pressure & Pressure Monitoring Systems

■ Options

▶ ±0.25% F.S Accuracy (Measuring Range ≥ 200 mbar)

▶ ±0.1% F.S Accuracy (Measuring Range ≥ 1000 mbar)

▶ -40...+125°C Operating Temperature

▶ "USE NO OIL" for Oxygen Application

▶ PCA Adapter G1/4" Male + G1/4" Male

▶ Stainless Steel Tag Plate

▶ Manufacture Calibration Certificate

▶ KOLAS ILAC-MRA Calibration Certificate

■ General Specifications

Pressure ranges	0~10 mbar to 0~1600 mbar
Accuracy	±0.5% F.S (Measuring Range ≥ 10 mbar) ±0.25% F.S (Measuring Range ≥ 200 mbar) ±0.1% F.S (Measuring Range ≥ 1000 mbar)
Electrical connection	DIN 43650A M12 Plug 2 m Cable General Head
Process Connection	G1/4" Female + G1/4" Female (DIN EN ISO 228)
Signal output	4~20 mA, 2-wire 0~10 V / 0~5 V / 1~5 V, 3-wire
Operating temperature	-20~+100℃ Option: -40~+125℃
Material	Wetted Parts & Sensor Diaphragm: SUS316L Body: SUS316L
Response Time	< 5 ms
