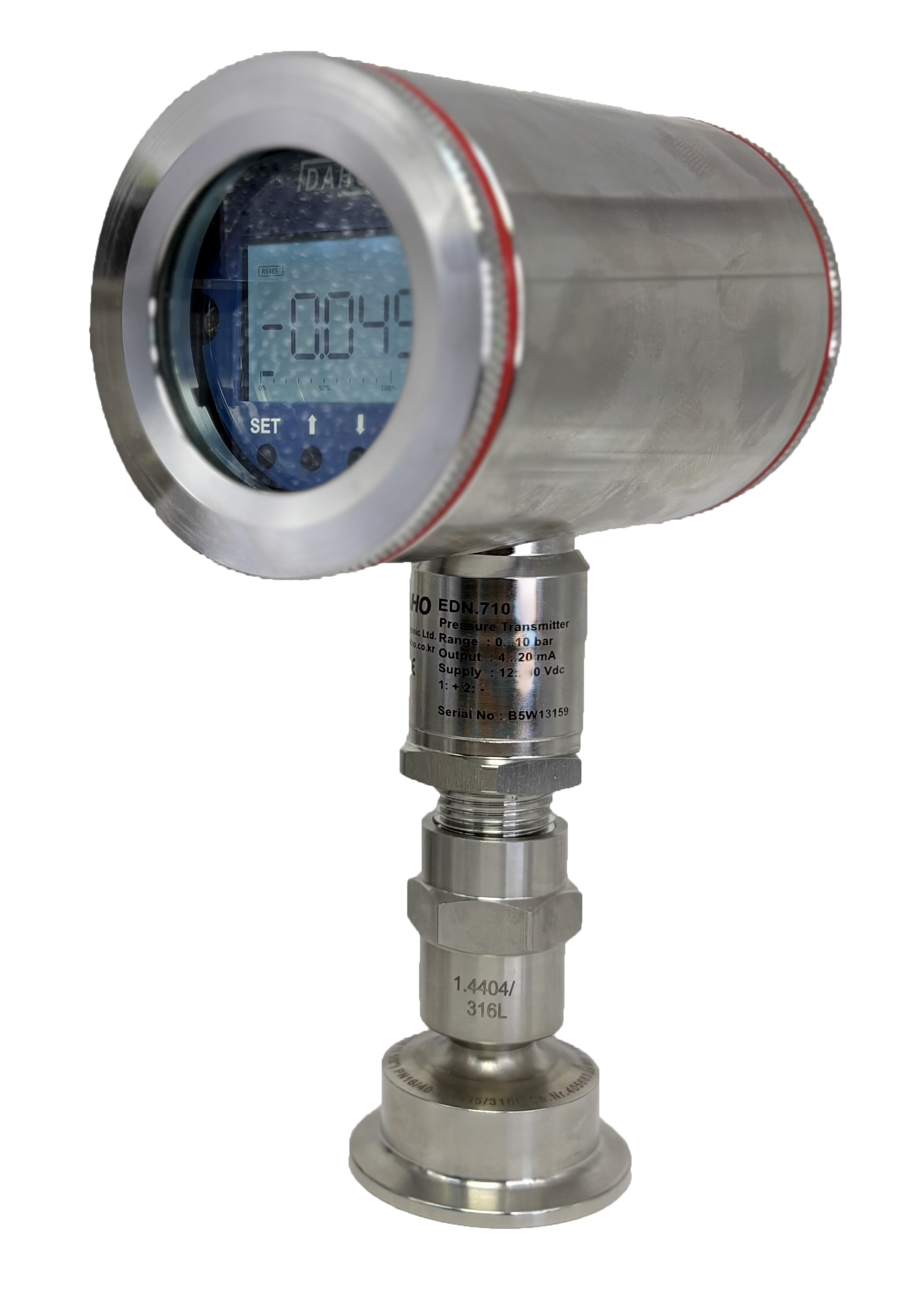

■ EDN.713 Hygienic Pressure Transmitter

-       All stainless steel housing & wetted parts

-       Hygienic design for food, pharmaceutical & medical applications

-       Accuracy ±0.5%, ±0.25%, ±0.1% F.S

-       RS485 communication & 2 relay switches [option]



■ Product Overview

The EDN.713 series is a hygienic pressure transmitter designed for applications in food, beverage, pharmaceutical, and medical industries where cleanliness and hygiene are critical.



All components are made of stainless steel, ensuring durability and preventing issues such as coating peeling or particle contamination found in painted instruments.



It utilizes a piezoresistive silicon pressure sensor combined with advanced electronics and PCB design, providing high accuracy and reliability.



The internal circuitry incorporates protection against noise, burst, insulation, and surge, ensuring stable operation in industrial environments.



Optional RS485 communication and dual relay outputs allow easy integration into various control systems.



■ Pressure Measurement Principle

The EDN.713 measures pressure using a piezoresistive silicon pressure sensor.



Pressure is transmitted through a stainless steel diaphragm, generating a small deformation that is converted into an electrical signal.



This signal is amplified and compensated to provide stable analog or digital output.



■ Materials of Wetted Parts

All wetted parts and housing are made of stainless steel, ensuring excellent corrosion resistance and cleanability.



Various sanitary process connection standards are supported:

▶ ASME & ISO 1127

▶ DIN 11851

▶ APV-RJT

▶ IDF

▶ Flush extension mounting



■ Accuracy Class

▶ ±0.5% F.S

▶ ±0.25% F.S

▶ ±0.1% F.S



■ Communication & Switches

Optional features include:



▶ RS485 communication

▶ Dual relay outputs



■ Applications

▶ Food & beverage industry

▶ Pharmaceutical industry

▶ Medical industry

▶ Hygienic processing systems



■ Explosion Protection

The EDN.713 is currently under certification for Ex d IIC T6 and is expected to be approved by KOSHA.



■ General Specifications

Pressure ranges	-1…0 bar to 0…1000 bar
Accuracy	± 0.5% F.S [options] ± 0.25% ± 0.1%
Electrical connection	Frameproof cable gland M12 plug
Signal output	4...20 mA, 2 wire-system 0…10V, 3 wire-system 0…5V, 3 wire-system 1…5 V, 3 wire-system 0.5…4.5V, 3-wire system
Operating temperature	-20…+80 ℃ / standard -40…+125℃ / option
