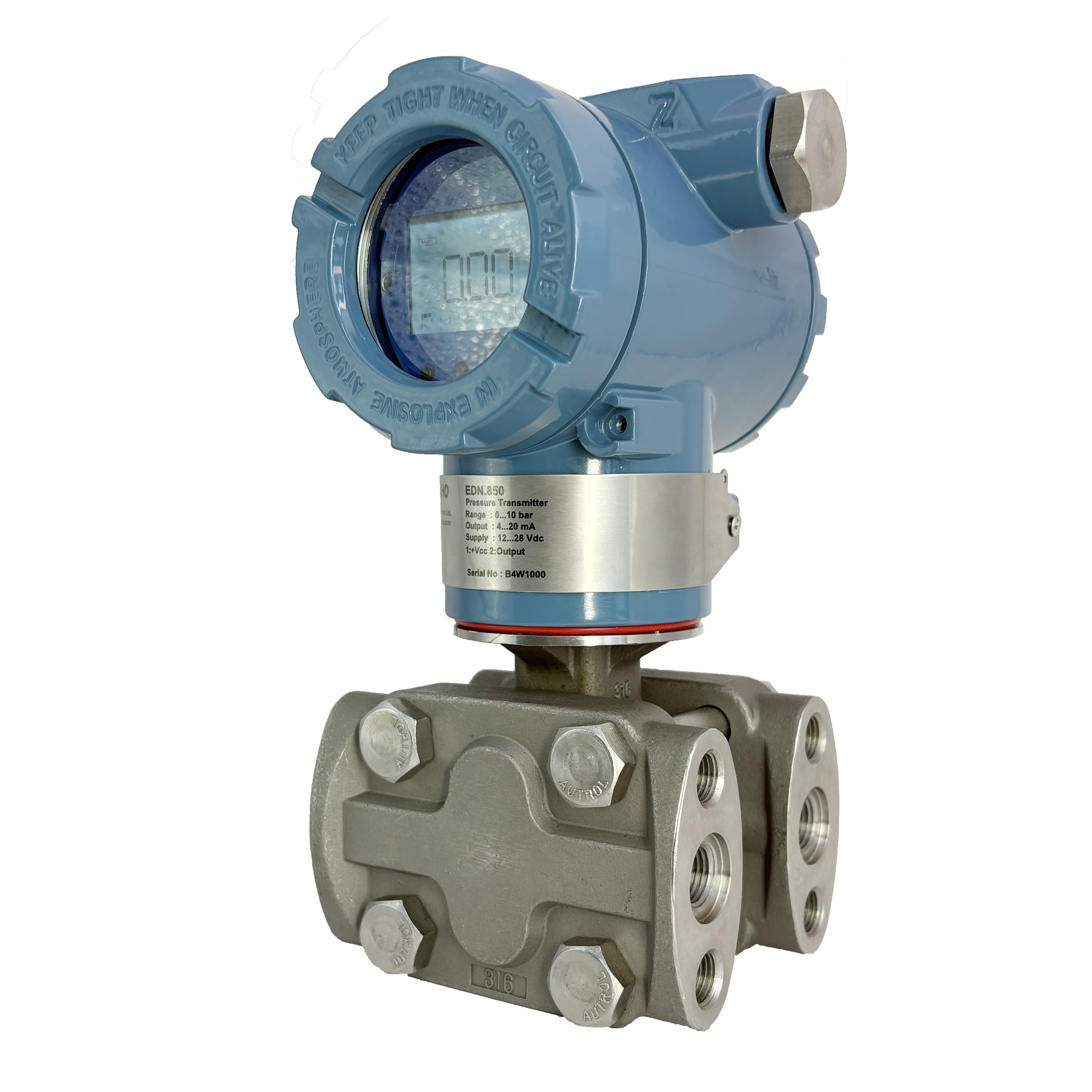

■ EDN.850, Differential pressure transmitter with LCD

- Aluminum housing

- All stainless steel wetted parts

- LCD window with white backlight

- Differential pressure range 70 mbar to 40 bar

- Static pressure up to 200 bar

- Analog & ratio-metric output available

- CE certified



■ Product Overview

The EDN.850 differential pressure transmitter is equipped with an LCD window featuring a white backlight. The housing is made of aluminum, and all wetted parts are constructed from stainless steel.

Except for special fluids, chemical corrosion does not occur, and depending on industrial requirements, a male adapter can be added to the female pressure connection.

The welded joints are fabricated using both laser welding and argon welding, ensuring high reliability and durability.

The pressure sensor utilizes a piezoresistive silicon element, with a measurement range from 70 mbar up to 40 bar, and a maximum static (line) pressure of 200 bar.

■ Applications

▶ Hydraulic and pneumatic systems

▶ Industrial process control and instrumentation

▶ Explosion hazard areas

▶ Pressure calibration and testing systems

▶ Liquid pressure control systems

■ Accuracy Class

≤ 0.5% F.S

(Option: ≤ 0.25%, 0.1%)

■ Output Specifications

Analog output: 4…20mA, 0…10V, 0…5V, 1…5V, 0.5…4.5V

Ratio-metric output: 0.5…4.5V / 5V

■ LCD Display

▶ 4 1/2-digit digital display

▶ White backlight

▶ Bar graph display

■ Options

▶ RS485 communication

▶ 2 relay outputs (switch functions)

■ Certifications

▶ CE (Declaration of Conformity)

▶ Explosion-proof certification (Scheduled to obtain KCs certification in July–August 2026)

▶ Ex d IIC T6

Differential pressure range	0…25 mbar to 0…35 bar
Static pressure	Max. 200 bar
Accuracy	[Standard] ± 0.5% F.S [options] ± 0.25% ± 0.1%
Electrical connection	Plug: DIN43650 A, M12 plug, Cable type, Head type
Signal Output	2-wire: 4…20mA 3-wire:0…10V, 0…5 V, 1…5V
Pressure connection	Female G1/4” x Female G1/4”
Process temperature	Operating: -20…80℃ Compensated : 0…70℃
