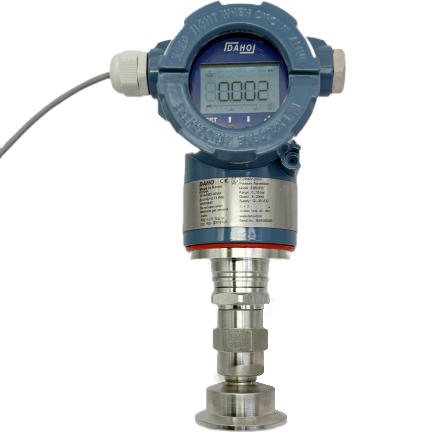

■ EDN.813 Hygienic Pressure Transmitter

-       LCD window & bar graph display

-       All stainless steel housing & wetted parts

-       Accuracy ±0.5%, ±0.25%, ±0.1% F.S

-       RS485 communication & 2 relay switches (option)



■ Product Overview

The EDN.813 is a hygienic pressure transmitter optimized for applications requiring high levels of cleanliness, such as food & beverage, pharmaceutical, and medical industries.



It is designed based on advanced pressure sensor technology and modern electronic components, providing high accuracy and reliability. All wetted parts and housing are made of stainless steel, ensuring durability and hygienic performance.



The transmitter incorporates advanced PCB design and protection technologies against noise, burst, insulation, and surge, ensuring stable operation in various industrial environments.



The EDN.813 optionally supports RS485 communication and 2 relay switch outputs, allowing flexible system integration. The LCD window with bar graph display enables easy on-site monitoring.



■ Pressure Measurement Principle

The EDN.813 measures pressure using a piezoresistive silicon pressure sensor.



Process pressure is transmitted through a stainless steel diaphragm, causing a minute deformation in the sensing element. This deformation is converted into an electrical signal.



The signal is amplified and compensated by internal PCB electronics and output as stable analog or digital signals.



■ Materials of Wetted Parts

All wetted parts and housing are made of stainless steel, providing excellent corrosion resistance and cleanability for hygienic applications.



The housing is powder-coated to enhance durability and prevent corrosion or damage over long-term use.



■ Accuracy Class

The EDN.813 series provides the following accuracy options:

▶ ±0.5% F.S

▶ ±0.25% F.S

▶ ±0.1% F.S



■ Communication & switches

Optional features include:

▶ RS485 communication

▶ 2 relay switches



■ Applications

The EDN.813 is suitable for the following industries:

▶ Food & beverage industry

▶ Pharmaceutical industry

▶ Medical industry



■ Explosion-proof Rating

EDN.813 is currently undergoing the certification process with KOSHA for the general explosion-proof rating Ex d IIC T6, and is expected to obtain the certificate in June 2026.

■ Sanitary Connections

▶ ASME & ISO 1127

▶ Groove nut, DIN 11851

▶ Hexagon nut, APV-RJT

▶ Groove nut, IDF

▶ Flush extension mounted

▶ Cooling device (up to 200 ℃ / 300 ℃)



■ General Specifications

Pressure Ranges	0…1 to 0…40 bar
Accuracy	± 0.5%, 0.25% & 0.1% F.S
Output signal	4...20 mA, 2 wire-system 0…10V, 3 wire-system 0…5V, 3 wire-system 1…5 V, 3 wire-system 0.5…4.5V, 3-wire system
Storage-/Operating Temperature	-20…+80 ℃ / standard -40…+125℃ / option
